hideSuperClass

Description

With the help of this configuration parameter it is possible to show the method call as part of the child class instead of the super class if the call starts from the child class.

Default value

The default value of this configuration parameter is false.

Example

Here is an example from the JUnit tests using this configuration parameter:

// ARRANGE
PlantUMLSequenceDiagramConfigBuilder builder = new PlantUMLSequenceDiagramConfigBuilder(
		CallerClassA.class.getName(), "testSomething").withHideSuperClass(true); (1)
PlantUMLSequenceDiagramGenerator generator = new PlantUMLSequenceDiagramGenerator(builder.build());
String expectedDiagramText = IOUtils.toString(
		Objects.requireNonNull(classLoader.getResource("sequence/0002_basic_super_class_sequence_diagram_with_hide_super_class.txt")),
		StandardCharsets.UTF_8);

// ACT
String generatedDiagram = generator.generateDiagramText();

// ASSERT
assertAll(() -> assertNotNull(generatedDiagram), () -> assertEquals(expectedDiagramText.replaceAll("\\s+", ""),
		generatedDiagram.replaceAll("\\s+", "")));

1	activate "hide super class" toggle

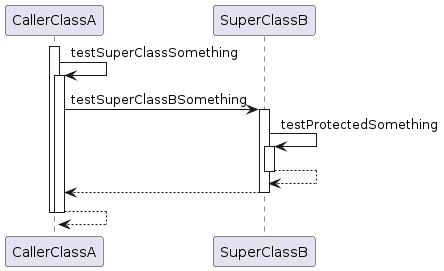

which is rendered this way:

0002_basic_super_class_sequence_diagram_with_hide_super_class_diagram

and produces this PlantUML diagram text:

@startuml

participant CallerClassA
participant SuperClassB

activate CallerClassA
	CallerClassA -> CallerClassA : testSuperClassSomething
	activate CallerClassA
		CallerClassA -> SuperClassB : testSuperClassBSomething
		activate SuperClassB
			SuperClassB -> SuperClassB : testProtectedSomething
			activate SuperClassB
				SuperClassB --> SuperClassB
			deactivate SuperClassB
			SuperClassB --> CallerClassA
		deactivate SuperClassB
		CallerClassA --> CallerClassA
	deactivate CallerClassA
deactivate CallerClassA

@enduml

Without the parameter the diagram would look like this:

0002_basic_super_class_sequence_diagram_diagram
